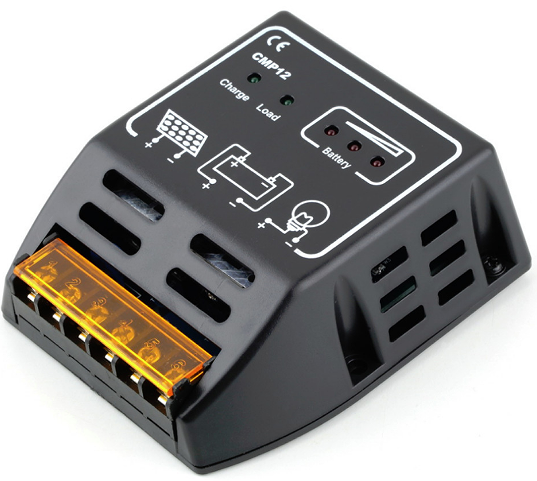

Solar Controller 10a/20a 12v/24v Solar Charge Controller Solar Panel Battery Regulator Safe Protection Mobile charge

Solar Controller 10a/20a 12v/24v Solar Charge Controller Solar Panel Battery Regulator Safe Protection Mobile charge Item NO.: 928127

Write a Review
US$ 4.50
Current
10A 20A
Shipping Cost
Shipping Cost Please Click Inquiry Button Below for Shipping Cost
Customized Requirements
Quantity
MOQ ( 100 )

Copy and share this link on social network or send it to your friends

Copy
  • Unique voltage switching protection circuit to ensure stable operation of the system,Adopt full patch method, more stable performance,Use custom fan-shaped all-aluminum heat sink, especially suitable for working in tropical hot environment
Product Name Solar Controller 10a/20a 12v/24v Solar Charge Controller Solar Panel Battery Regulator Safe Protection Mobile charge
Item NO. 928127
Weight 0.16 kg = 0.3527 lb = 5.6438 oz
Volume 0.115 CBM
Category Photovoltaic
Creation Time 2021-04-01



The specifications:

Rated voltage

6V,12V/24V

Voltage of stop power supply

5.4V,10.8V/21.6V

Rated charging current

5A 10A 15A 20A

Voltage of resume power supply

6.3V,12.6V /25.2V

Rated load current

5A 10A 15A 20A

Voltage of stop charging

7.2V,14.4V /28.8V

Working temperature

-20 +60℃

Temperature coefficient of voltage stop charge

-3mV//cell

Dimension(L*W*H)

103×95×38mm

Net weight

120g 160g



I. INDICATOR LED

1. Charge LED is used to indicate the charging status of battery. Lighting is in-charging mode, flashing is floating charge mode. LED turn off means charging stopped.

2. There is output and load can work if the Load LED is lighting. There isn’t output and the load cannot work if Load LED off.

Notice:

1. Please make sure the rated voltage of solar panels, batteries the loads are the same. All of them should be 6V, 12V or 24V.

2. The rated current of solar panels and load must be less than the rated current of controller.
